CNC Machining Center (Milling & Lathe)
CNC MILLING MACHINE

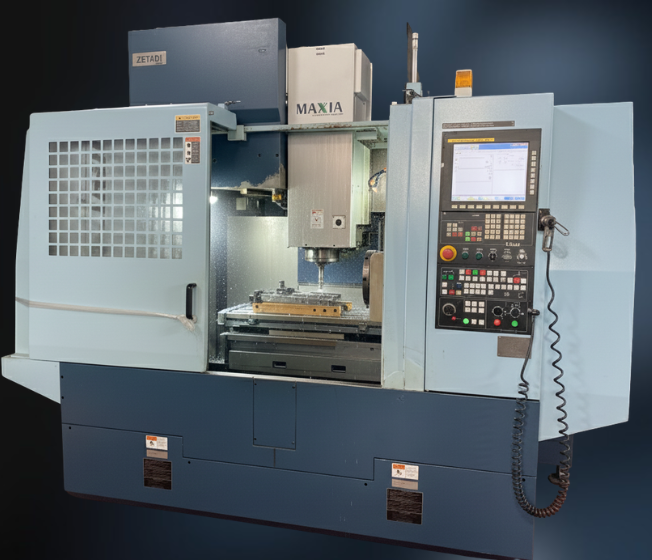

MAXIA V.PLUS 1000
The Maxia V.Plus 1000 is a high-performance Vertical Machining Center (VMC) designed for precision, rigidity, and high-speed milling operations. It is engineered to handle a wide range of applications, from heavy-duty mold making to high-precision component manufacturing.
Key Features and Capabilities:
Robust Construction: Features a heavy-duty cast iron frame (Mehanite) that ensures maximum stability and vibration damping during high-speed cutting.
X/Y/Z/A Travel: Provides a generous working envelope (typically $1000 \times 600 \times 600 \text{ mm}$), allowing for the machining of medium to large-sized workpieces.
High-Speed Spindle: Equipped with a high-torque spindle designed for both aggressive roughing and fine finishing.
Precision Linear Guides: High-precision linear guideways on all axes ensure rapid traverse speeds and exceptional positioning accuracy.
Automatic Tool Changer (ATC): Features a fast and reliable tool changing system (typically 24-station arm type) to minimize non-productive time.
Advanced Control System: Usually integrated with industry-standard CNC controllers (like Fanuc or Heidenhain) for complex 3D contouring and efficient workflow management.
Technical Specifications (Summary):
| Feature | Specification |
| Machine Type | Vertical Machining Center (VMC) |
| X-Axis Travel | 1000 mm |
| Table Size | Approx. 1200 x 600 mm |
| Spindle Taper | BT-40 / DIN 69871 |
| Rapid Feedrate | Up to 30-36 m/min |
| Accuracy | High-precision positioning and repeatability |
Why use the Maxia V.Plus 1000?
This machine is recognized in the industry for its reliability and versatility. Whether working with aluminum, steel, or specialized alloys, the V.Plus 1000 delivers consistent surface finishes and tight tolerances, making it a cornerstone for any modern CNC Machine.
CNC LATHE MACHINE

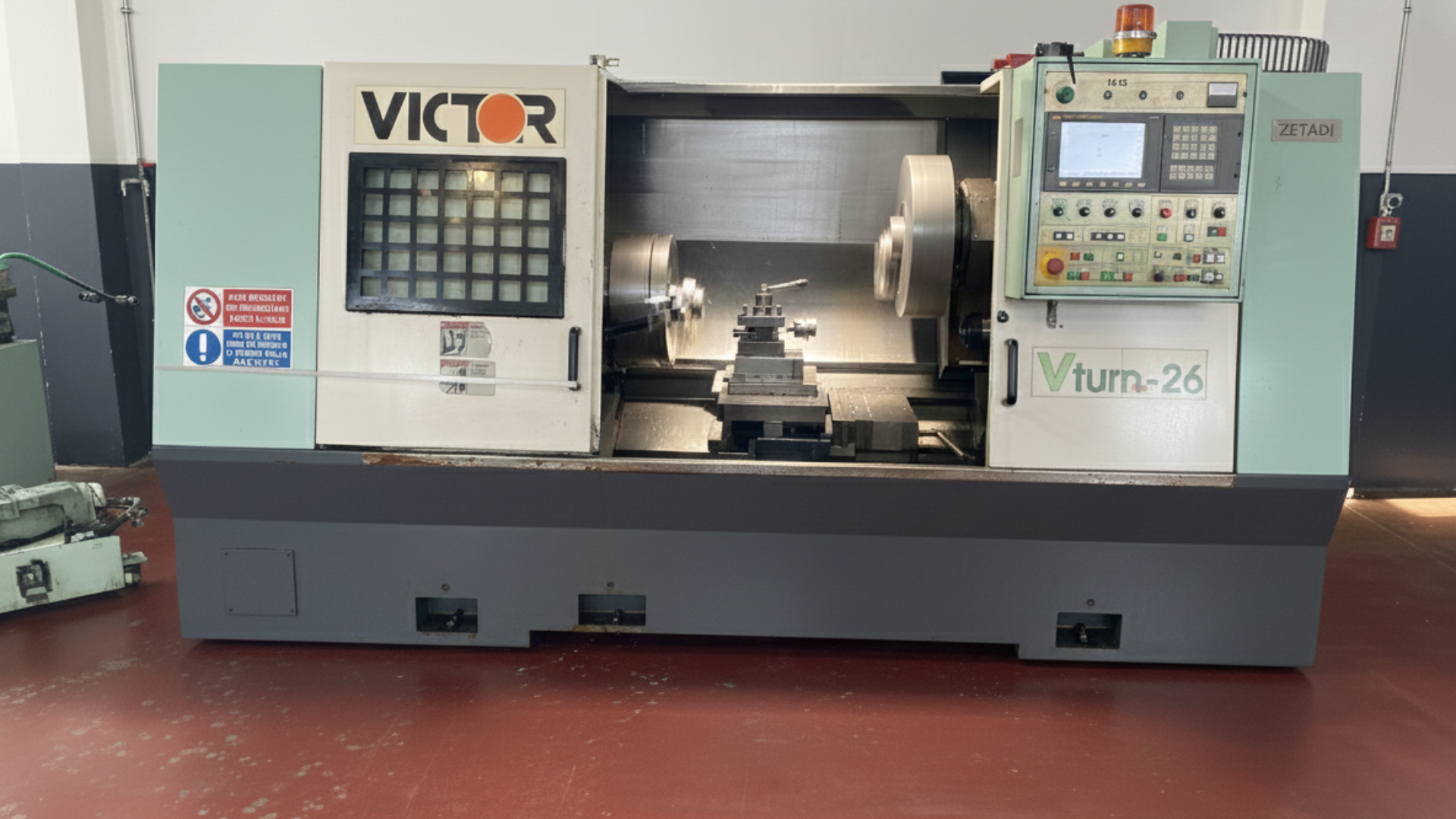

V-TURN 26 (CNC Lathe)
The V-Turn 26 is a heavy-duty CNC Turning Center engineered for high-precision machining and superior metal removal rates. Built with a focus on rigidity and thermal stability, this machine is ideal for producing complex cylindrical components with tight tolerances and high-quality surface finishes.
Key Features and Capabilities:
Exceptional Rigidity: Constructed with a high-grade cast iron bed that minimizes vibration, ensuring accuracy even during heavy-duty cutting and interrupted cuts.
High-Precision Spindle: Features a powerful, high-torque spindle designed for consistent performance across a wide range of RPMs.
Precision Tool Turret: Equipped with a fast-indexing hydraulic or servo turret, allowing for rapid tool changes and reduced cycle times.
Advanced Motion Control: Utilizes high-precision ball screws and hardened box ways (or linear guides, depending on configuration) for maximum durability and positioning repeatability.
Ergonomic Design: Designed for easy chip evacuation and operator accessibility, making it highly efficient for both small batches and mass production.
Technical Specifications (Summary):
| Feature | Specification |
| Machine Type | CNC Turning Center (Lathe) |
| Swing Over Bed | Approx. 500 – 600 mm |
| Max. Turning Diameter | Approx. 380 – 420 mm |
| Max. Turning Length | Up to 650 mm (Standard) |
| Spindle Nose | A2-8 |
| Control System | Fanuc / Heidenhain / Siemens compatible |
Why choose the Zetadi V-Turn 26?
The V-Turn 26 is a versatile workhorse for any CNC Machine. It excels in machining various materials, from tough alloy steels to non-ferrous metals. Its combination of power, precision, and reliability makes it the perfect solution for industries such as automotive, aerospace, and general mechanical engineering.
M2R.AL Quality Assurance: This machine represents our commitment to providing high-end industrial solutions that guarantee productivity and long-term investment value.
